Quick overview

rameau is a Python interface to run lumped or semi-distributed model simulating river flows and/or groundwater levels in a single watershed or a cluster of watersheds.

import rameau as rm

It follows an object-oriented philosophy. The core object is a Model that can be used for simulation, optimisation, and forecast runs.

To instantiate a Model, the simplest approach is to rely on a TOML configuration file.

model = rm.Model.from_toml('model.toml')

Simulation

The Model can then directly be used to start a simulation run. It will use the parameters contained in the TOML file.

sim = model.run_simulation()

This will return a Simulation object from which outputs can be retrieved as dataframes. The output variables can be riverflow and/or watertable

sim.get_output("riverflow")

watersheds	basin at gauge
dates
1985-01-01	3.734229
1985-01-02	3.726370
1985-01-03	3.718765
1985-01-04	3.710891
1985-01-05	3.703270
...	...
2003-07-27	5.449473
2003-07-28	5.441113
2003-07-29	5.446894
2003-07-30	5.438541
2003-07-31	5.429877

6786 rows × 1 columns

sim.get_output("watertable")

watersheds	basin at gauge
dates
1985-01-01	167.716812
1985-01-02	167.727081
1985-01-03	167.737000
1985-01-04	167.746597
1985-01-05	167.755859
...	...
2003-07-27	194.993118
2003-07-28	194.965454
2003-07-29	194.938141
2003-07-30	194.910583
2003-07-31	194.882782

6786 rows × 1 columns

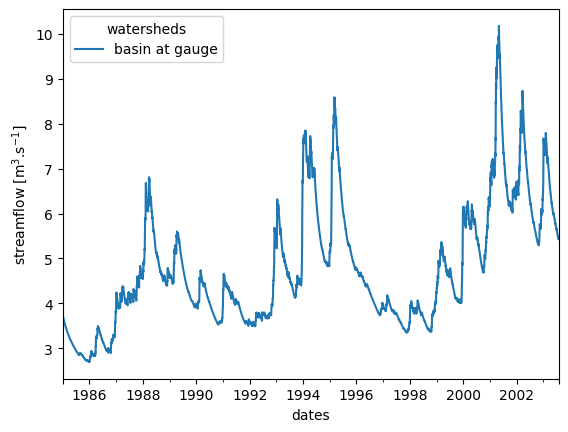

ax = sim.get_output("riverflow").plot(ylabel='streamflow [m$^3$.s$^{-1}$]')

These dataframes can be used to quickly plot the timeseries.

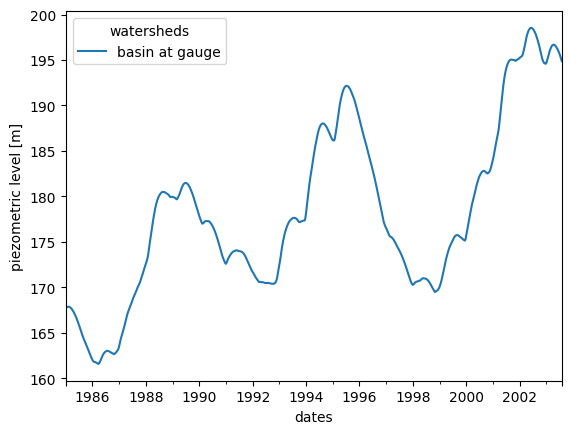

ax = sim.get_output("watertable").plot(ylabel='piezometric level [m]')

Parameter estimation

The Model can also be used to perform an optimisation run to determine the optimal parameter values that best fit the observed data. It will use the parameter values available in the TOML file as a starting point, and optimise the parameters identified as to be optimised in the TOML file.

opt = model.run_optimization()

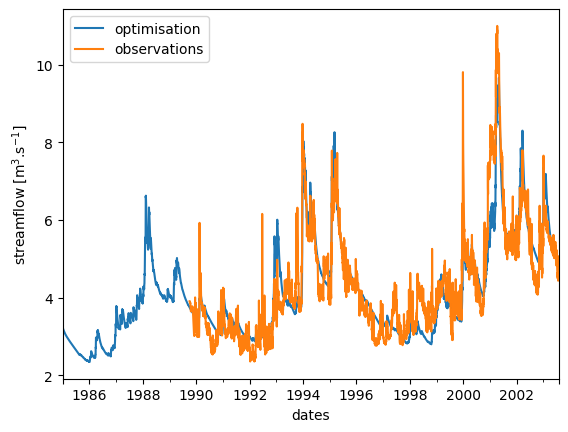

This will return an OptiSimulation object. Again, the outputs can be retrieved from it as dataframes. And so do the observations directly from the Model instance (either riverobs or groundwaterobs). They can be gathered into a single dataframe and plotted against one another.

import pandas as pd

df =  pd.concat(
    [
        opt.get_output("riverflow"),
        model.get_input('riverobs')
    ],
    axis=1
)

df.columns = ['optimisation', 'observations']
ax = df.plot(ylabel='streamflow [m$^3$.s$^{-1}$]')
